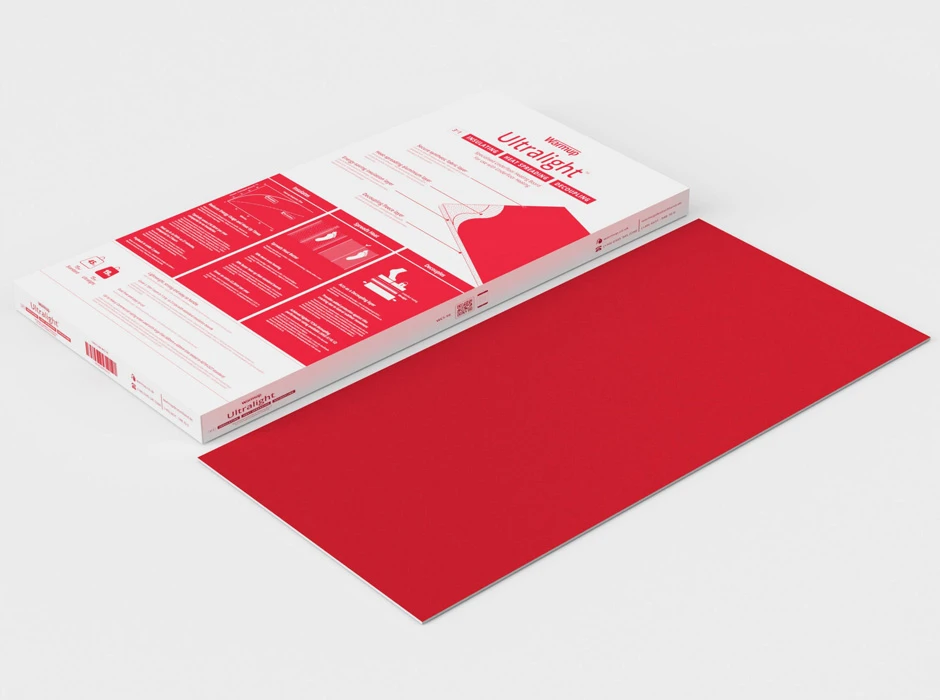

Warmup Ultralight Underfloor Heating Board

800mm x 1200mm, 6mm thick, 1.1kg per board

Ultralight is the next generation of insulation by Warmup, developed for faster heat up times and to offer an easier, more flexible installation. Insulation dramatically improves the energy-efficiency of underfloor heating as it assists in preventing the heat produced by the system escaping into the subfloor below – thereby keeping the radiant warmth within the room whilst reducing energy costs.

Ultralight has been engineered with a multi-layer construction method for maximal insulation properties and heat conductivity. Its energy-saving insulation layer is enveloped between a top layer of synthetic fabric, onto which a heating system can be directly installed, an aluminium core which assists in an even and efficient distribution of heat, and a base layer of decoupling fleece.

1. INSULATING: High density insulating core
2. HEAT SPREADING: Aluminium layer for faster, more even, heat spread
3. DECOUPLING: Tested to ANSI standards and rated as HIGH
4. PERFORMANCE SOUND REDUCING: Tested and rated by Intertek for acoustic performance
5. LIGHTER: ⅓ lighter than XPS insulation board (per m²)
6. DUST FREE: Less dust means less mess
7. COVERAGE: 1200 mm x 800mm, total coverage is 0.96m², which meansless boards and less joints
8. EASIER TO CUT: No cement skin, so easier to cut with a Stanley knife
9. MORE ROBUST: Less susceptible to damage during transit and when
   handling
