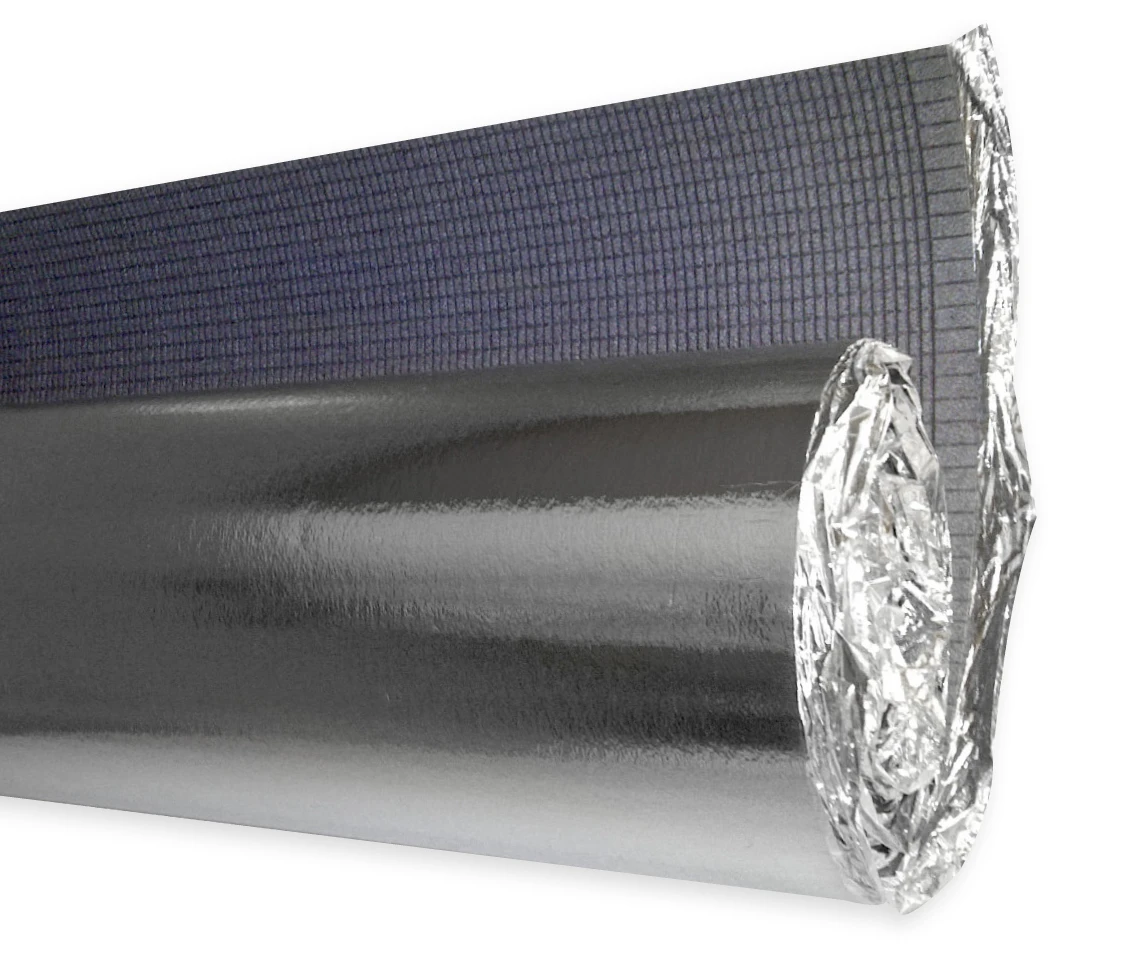

Warmup Insulated Underlay

Warmup Insulated Underlay

This kit comprises of 1 x WIU10 roll

The Warmup® Insulated Underlay is a thin polystyrene insulation barrier with effective acoustic properties to reduce contact noise.
It sits between the cold subfloor and Warmup’s Foil Heater, reflecting heat upward, making the heating system more efficient. The foil backing acts as a moisture barrier. The Underlay is designed to work with Warmup’s Dual Overlay.

• Resists heat loss and increases heating system’s efficiency
• Extremely effective in reducing contact noise
• Very thin at only 6mm in depth
• Lightweight and easy to install
• Foil backing acts as a moisture barrier
• Recommended use with the Warmup® Dual Overlay System

Technical Data
• Roll Size: 1200mm(W); 2.5sqm, 5sqm, 10sqm and 25sqm (L)
• Thickness: 6mm
• Composition: Top Layer: Grooved polystyrene
Bottom Layer: Silver foil with adhesive overlap
• Rm Value: 0.19
• Contact Sound Reduction*: 25dB ?Lw when used in
conjunction with the Warmup® Dual Overlay System.

• For more information please refer to the Warmup Brochure

Please note:

• For areas over our available sizes, please call us on 01425 621173.
